96Cores Enclosure(4*MPO(Male LL)-LC OM3 Cassettes)

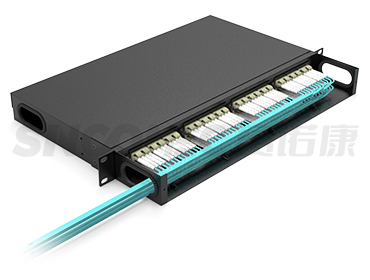

1U 96C 4Cassettes full configuration with adapter and MPO-LC OM3 hydra fanout branch patch cord
Model:SNC-MPO10-A-002-4*24C-OM3-LL
Share:
Purchase consultation
Product Specification
Data Sheets

Maximum number of cores
96
Number of cassettes
4
Height of enclosure
1U
Mounting dimension
19 inch
Enclosure type
Fixed type
Number of patch cord
1piece of 24 cores/2pieces of 12 cores
Number of MPO port
1 or 2
Number of LC port
6
MPO adapter type
Key up to key down
Front adapter type
LC quadruplex
Enclosure material
Cold-rolled sheet
Fiber type
OM3
Patch cord type
0.9mm fanout patch cord
Fiber number
24 cores
MPO IL
Low loss
MPO polishing
PC
MPO housing color
Aqua
LC housing color
Blue
Breakout length
0.35M
Breakout diameter
0.9mm
MPO connector type
Male
RL
0.35dB
Breakout method
Heat shrink tubing
Polarity
Type A/AF/B
IL(Typical/MPO)
0.1dB
IL(Max./MPO)
0.35dB
Cable diameter
0.9mm
Cable color
12 Colour
Cable jacket material
LSZH
Flame retardant grade
OFN/OFNR/OFNP
Fiber brand
YOFC/CORNING
Fiber type
OM3
Working wavelength
850&1300nm
Fiber loss
≤2.4dB@850nm/≤0.6dB@1300nm
Tolerance
﹢6cm
Durability
≥500 times
Operating temperature
-10 to 70℃ (14 to 158℉)
Storage temperature
-40 to 85℃ (-40 to 185℉)




PRODUCTION LINE INTRODUCTION



SINOCONEC has its own sheet metal production and spraying workshop, which can provide the whole process supporting services from research and development to production. It has a number of laser cutting machines, bending machines, punching machines, welding machines, and electrostatic spraying lines. SINOCONEC strictly controls the quality of MPO Enclosure to ensure that the product function and appearance are flawless. Products have passed a number of third-party quality certification. MPO Enclosure has been sold in 60+ countries around the world to help customers quickly build data centers and computing centers.





PRODUCT PRESENTATION

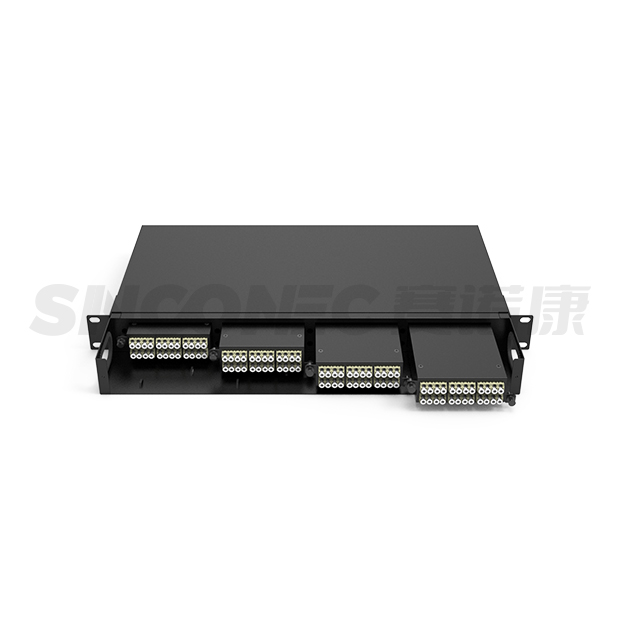

The 1U 4-cassettes Enclosure is a high-density cable distribution box that can accommodate up to 24 cores and up to 4 MPO interfaces in a single module. Usually built-in MPO-LC SM low loss 0.9mm hydra fanout branch patch cord. The cassettes is also available in a variety of core numbers and adapter models, providing a variety of flexible configuration options for data center construction. You only need to replace the cassettes for subsequent expansion, which simplifies expansion and saves user costs. Thecassettes can be mounted on the rack or used independently.





ENCLOSURE SERIES PRODUCTS







PRODUCT APPEARANCE







PRODUCTION & TESTING EQUIPMENT







FEATURES


Modular MPO cassettes
Removable modular design can achieve rapid replacement and wiring, and reach max capacity 96 fibers in 4 MPO cassette module.
Easy disassembly
Each single sliding tray can be easily disassembled by pressing its locking clip, and can be easily assembled by simply pushing it back in the opposite direction.
Cable entry mode
Oval cable entry ports at both lateral sides of the patch panel as the primary cable leading; and the spare round cable entry ports at the back to meet different cable inlet requirements of users.
Cable organizing panel
The front of patch panel is equipped with cable organizing panel, which is convenient for cable management.
